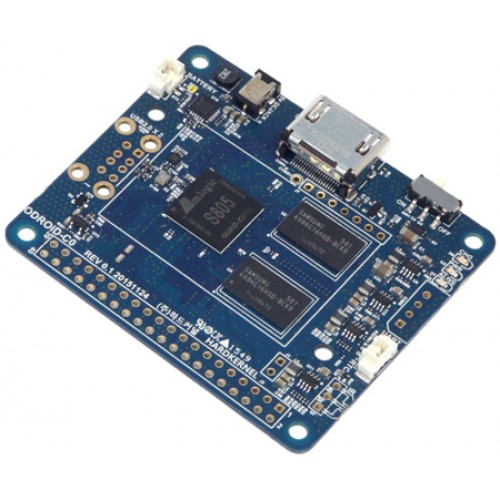

The ODROID-C0 is a computer for those who wish to make a more flexible and portable applications. It is a minimized hardware version of the ODROID-C1+. Battery power circuit is fully integrated. Just attach a 3.7V Li+ battery and make it mobile. It is highly suitable for IoT projects, wearables, and other applications that require a lightweight device.


All the ODROID-C1/C1+ OS images are fully compatible with the ODROID-C0. Some of the modern operating systems that run on the ODROID-C0 are Ubuntu, Android, Arch Linux, Debian, and OpenELEC, with thousands of free open-source software packages available. There are also plenty of custom OS available for using the ODROID-C0  as a multimedia center, Kodi, gaming station, headless server and much more at our ODROID community.

The key features and improvements over the original ODROID-C1+:


* Amlogic ARM® Cortex®-A5(ARMv7) 1.5Ghz quad core CPUs

* Mali™-450 MP2 GPU (OpenGL ES 2.0/1.1 enabled for Linux and Android)

* 1Gbyte DDR3 SDRAM

* eMMC4.5 HS200 Flash Storage slot / UHS-1 SDR50 MicroSD Card slot

* 40pin + 7pin GPIOs (unpopulated)

* USB 2.0 Host x 2 (unpopulated)

* Infrared(IR) Receiver (unpopulated)

* Li+ rechargeable battery charger for wearable and robots application

* Battery voltage level is accessible via ADC in the SoC.

* DC/DC step-down converters for higher power efficiency

* DC/DC step-up converter for 5Volt rails (USB host and HDMI) from a Li-Polymer battery

* DIY friendly C0 Connector Pack is available for handy prototyping

Motherboard Specification
Processor Amlogic ARM® Cortex®-A5(ARMv7) 1.5Ghz quad core CPUs
RAM Memory 1Gbyte DDR3 SDRAM
Graphics Mali™-450 MP2 GPU (OpenGL ES 2.0/1.1 enabled for Linux and Android)
Storage eMMC4.5 HS200 Flash Storage slot / UHS-1 SDR50 MicroSD Card slot
Network None
I/O Connections (additional) USB 2.0 Host x 4, USB OTG x 1 Infrared(IR) Receiver 40pin GPIOs ALL UNPOPULATED
Input Power 5V DC (Power adaptor available separately)
Contents Of Box
Product Odroid C0 Mainboard

Odroid C0 - Multicore headerless prototyping computer

  • Brand: Hard Kernel
  • Product Code: HardKernel Odroid C0
  • MPN: ODroid C1
  • Availability: In Stock
  • 35.99€
