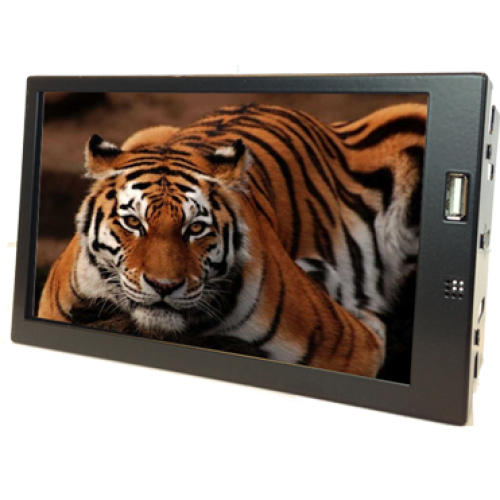

The Liymo 7" double DIN display unit is a 7" size widescreen monitor in a steel frame that fits into the double DIN opening for vehicle dashboards.

7 inch high definition screen

7” monitor with widescreen

The Liymo 7" double DIN display monitor has an high resolution, widescreen LCD. Suitable for vehicle PC's and portable computers

High resolution LCD

Compatible with full 1080 HDMI signals

The Liymo 7" double DIN display is designed to accept full HDMI signal, allowing you to create custom multimedia stations in smaller form factors than ever before

multiple input types

Full ranges of inputs designed around computer and CCTV systems

Use the Liymo 7" double DIN display in a wide range of appications thanks to it's range of inputs including HDMI, VGA and composite video

touchscreen

Touchscreen integrated

The Liymo 7" double DIN display has a built in resistive touchscreen to give even more options to installers and systems developers

raspberry pi compatible

Raspberry Pi compatible touchscreen monitor

For a small form factor touch screen computer consider the Liymo 7" double DIN display and our pre-installed software for plug and play touchscreen functions for the Raspberry Pi


vehicle solutions

Vehicle integration.

Open frame monitors offer a great deal of flexibility for installing within vehicle and car computer systems.






















Monitor Specification
Screen Size (diagonal) 7 inch
Aspect Ratio 16:9
Native Resolution 800×480 (native)
Maximum Resolution 1920 x 1080
Pixel Pitch (mm) 0.0635×0.190
Scan Frequency (Hz) 60-72
Response Time (ms) 15
Viewing Angle (degrees) 130º x, 120º y
Brightness Ratio (cd/m2) 250
Contrast Ratio 500:1
Backlight LED
Video Inputs HDMI, DVI, VGA, composite
Touchscreen Technology 4-wire resistive, USB
Input Power 12V DC
Operating Temperature

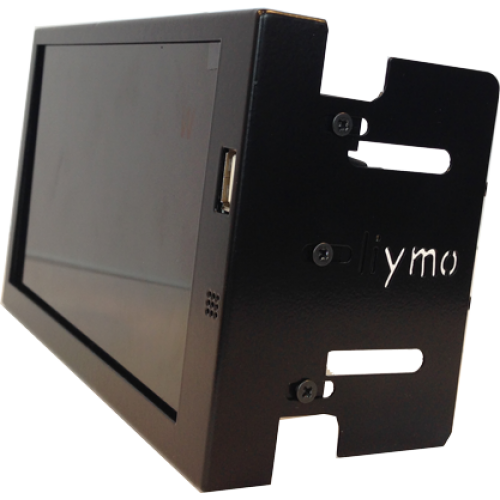

Mounting Options 2 DIN in dash frame
Contents Of Box
Product 1x Liymo Double DIN monitor
Connection Cables 1x HDMI (touch) cable, 1x Composite break-out cable, 1x VGA (touch) breakout cable
Power Adaptor 1x DC 12V plug (available in UK, US and EU style), 1x in-car cigarette lighter DC 12V adapter
Dimensions
Height (mm) 177
Width (mm) 108
Depth (mm) 72
Weight (g) 300

Liymo 7" Metal case Double DIN HDMI Touchscreen monitor

  • Brand: Liymo
  • Product Code: Liymo 7" HDMI Monitor
  • Availability: Out Of Stock
  • 221.51€
