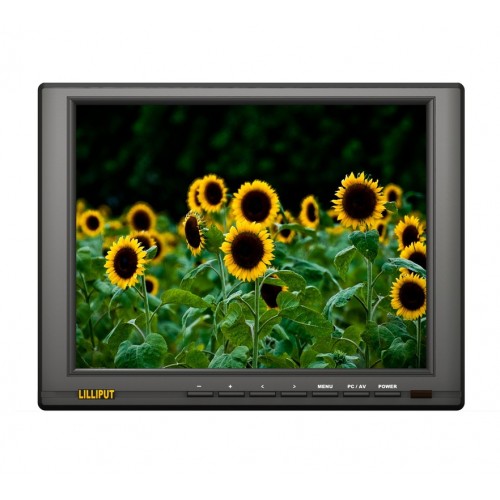

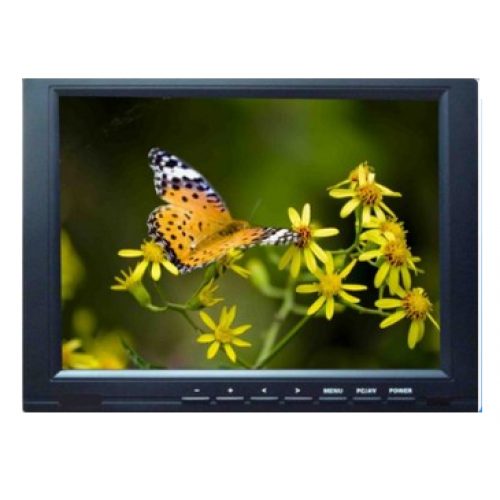

The Lilliput FA1045-NP/C/T is a 10" touchscreen monitor with HDMI, DVI, VGA, YPbPr, S-Video and composite inputs.

PLEASE NOTE - BEFORE ORDERING


PLEASE CHECK THAT YOUR CAMERA'S OUTPUT FEED FREQUENCY IS COMPATIBLE WITH THE INPUT FREQUENCIES OF THIS MONITOR BY CLICKING HERE FOR OUR LIST OF MONITORS AND SUPPORTED FREQUENCIES TYPES (FOR BLACKMAGIC CAMERA OWNERS AND OTHER 25FPS CAMERA TYPES)

10 inch high definition screen

10” high definition 4:3 monitor

The FA1045 is a 10" monitor with a 4:3 aspect ratio, similar to the regular 17" or 19" monitor you use with your  desktop computer. The standard 4:3 aspect ratio is well suited to applications that require a non-widescreen aspect ratio, such as CCTV monitoring and certain broadcast applications.

HDMI, VGA, composite

HDMI, DVI, VGA, YPbPr, composite S-Video

Unique to the FA1045, it also features a YPbPr video input (which is used for receiving analogue component signals) and an S-Video input (popular with legacy AV equipment). We recommend the FA1045 to customers who plan to use their monitor with a range of AV equipment, as this 10 inch monitor is certain to support it.



Ideal for CCTV monitor applications

Perfect CCTV monitor

You won't find a more suitable CCTV monitor than the FA1045. The 4:3 aspect ratio and wide selection of video inputs means this 10 inch monitor will work with any CCTV equipment, including DVRs.



10 inch touch screen model available

Touchscreen available

The FA1045 (model number FA1045-NP/C/T) is available with a 4-wire resistive touch screen. Lilliput UK continually stock both non-touch screen and touch screen models, so customers can make a choice that best suits their application.


























Monitor Specification
Screen Size (diagonal) 10.4 inch
Aspect Ratio 4:3
Native Resolution 800×600 (native)
Maximum Resolution 1920×1080 (maximum)
Viewing Angle (degrees) 130º x, 110º y
Brightness Ratio (cd/m2) 250
Contrast Ratio 400:1
Backlight CCFL
Video Inputs HDMI, DVI, VGA, YPbPr, composite
Audio Outputs Internal Speaker
Touchscreen Technology 4 wire resistive
Input Power 12V DC
Operating Temperature -20 to 60 deg C

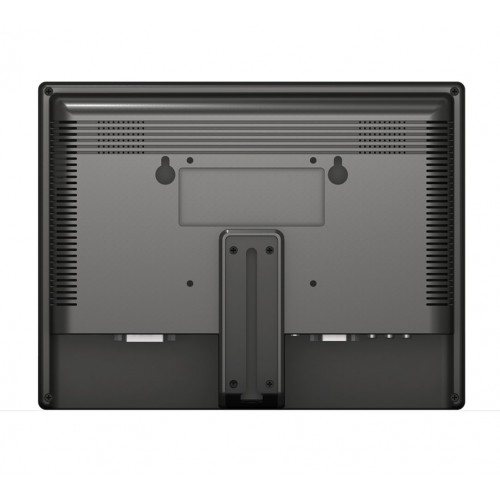

Mounting Options VESA 75, Vertical Slot Mount
Contents Of Box
Product 1 x FA1045/C/T Monitor
Connection Cables 1x HDMI cable, 1x VGA cable, 1 x USB cable
Power Adaptor 1x DC 12V plug (available in UK, US and EU style)
Mounts and stands
Additional accessories
Dimensions
Height (mm) 200
Width (mm) 226

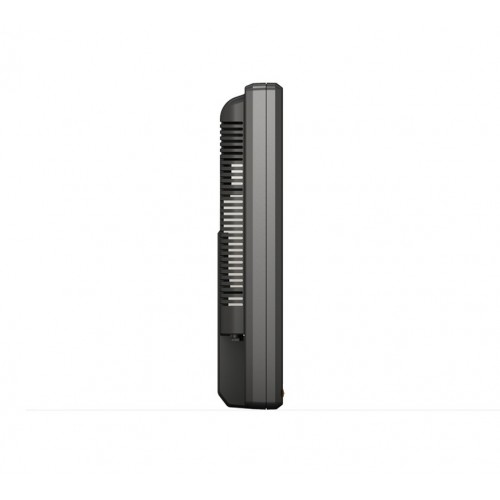

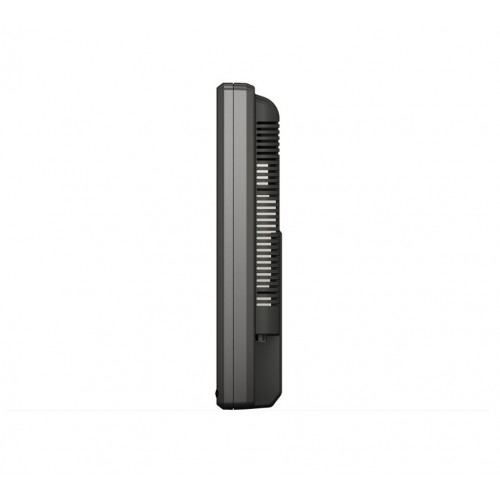

Depth (mm) 39
Weight (g) 902

Lilliput FA1045-NP/C/T - 10" HDMI touchscreen monitor

  • Brand: Lilliput
  • Product Code: FA1045-NP/C/T
  • EAN: 6950821600115
  • Availability: In Stock
  • 217.43€
