The Lilliput FA1014-NP/C/T is a 10.1 inch 16:9 LCD capacitive touchscreen monitor with HDMI, VGA and composite.

PLEASE NOTE - BEFORE ORDERING


PLEASE CHECK THAT YOUR CAMERA'S OUTPUT FEED FREQUENCY IS COMPATIBLE WITH THE INPUT FREQUENCIES OF THIS MONITOR BY CLICKING HERE FOR OUR LIST OF MONITORS AND SUPPORTED FREQUENCIES TYPES (FOR BLACKMAGIC CAMERA OWNERS AND OTHER 25FPS CAMERA TYPES)

black magic pocket cinema camera compatible

Black Magic Pocket Cinema Camera Compatible

This monitor is fitted with the 2674 processing chip - which gives a greater range of input frequencies that can be used. For the full range of compatible frequencies please click here

10 inch high definition screen

10.1” monitor with widescreen

Featuring a widescreen 16:9 aspect ratio, the FA1014 includes multiple AV connections to satisfy a broad range of customers requirements

High resolution LCD

HDMI upscaling for full 1080p compatibility

With it's IPS type screen panel the FA1014 boasts a native 720p resolution with full 1080p HDMI resolution available.

High brightness LCD

High brightness LCD panel

The FA1014 comes with a 400cd/m2 panel allowing for viewing in sunny conditions, and also comes with auto dimming controls for darker areas.

multiple input types

Connection friendly for computer and multimedia systems

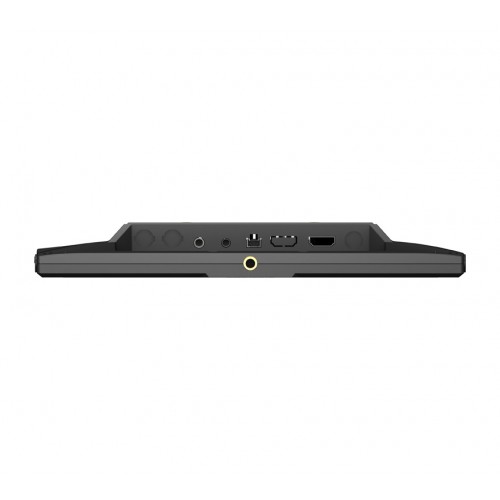

As with all modern Lilliput monitors, FA1014 ticks all the boxes when it comes to AV connectivity: HDMI, VGA and composite ideal for connectivity with computer and multimedia systems.

raspberry pi compatible

Raspberry Pi compatible monitor

The FA1014 is HDMI compatible making it a good match for the Raspberry Pi for small form PC systems.

PLEASE NOTE: CAPACITIVE TOUCH SCREENS HAVE LIMITED CONNECTIVITY WITH THE RASPBERRY PI. PLEASE CHECK YOUR OPERATING SYSTEM BEFORE PURCHASE TO ENSURE COMPATIBILITY

touchscreen

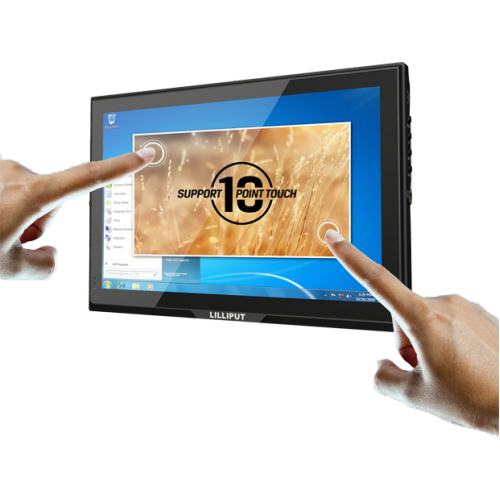

Capacitive Touch screen for multitouch functionality

Featuring the same technology as modern smart phones, the FA1014 comes fitted with a capacitive touch screen system which allows for gesture based control and multitouch capability.<NOTE : NOT COMPATIBLE WITH MAC OSX OR ANDROID>.

io control interface

I/O Control Interface

The FA1014 supports extra functionality such as reverse trigger camera mode, and computer host power controls. These functions can now be handled by the newest standard; the I/O control interface port found on newer models in the Lilliput range




entertainment solutions

Multimedia and entertainment solutions.

Lilliput HDMI monitors are ideally suited to integration with DJ systems owing to their portability and excellent visibility under low light conditions.

smart home solutions

Smart Home and CCTV Solutions.

Lilliput HDMI monitors can be integrated into existing CCTV systems thanks to their range of inputs, or used for home monitoring stations in smart home builds.

vehicle solutions

In Vehicle solutions.

Lilliput monitors can be integrated in car computer systems to provide high definition video on the move.






















Lilliput FA1014 Instruction Manual Download
Lilliput FA1014 CE Certificate Download
Lilliput FA1014 Mechanical Drawing Download
Monitor Specification
Screen Size (diagonal) 10.1 inch
Aspect Ratio 16:9
Native Resolution 1280 x 800 (native)
Maximum Resolution 1920×1080 (maximum)
Viewing Angle (degrees) 170º x, 170º y
Brightness Ratio (cd/m2) 350
Contrast Ratio 800:1
Backlight LED
Video Inputs HDMI, VGA, composite
Audio Outputs Internal Speaker
Touchscreen Technology Capacitive multitouch, USB
Input Power DC 12V (Wide Voltage optional - see related items for details)
Operating Temperature -20 ~ 60 degrees

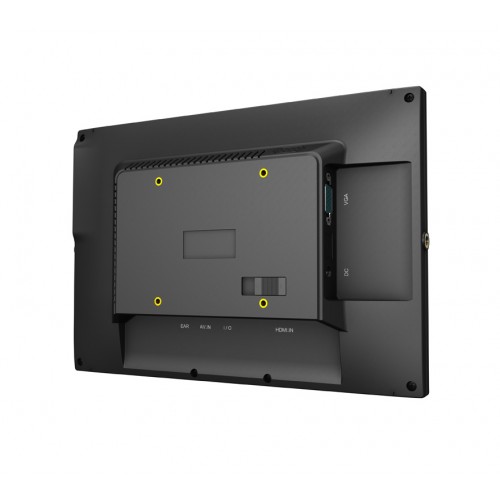

Mounting Options VESA 75, ¼ inch BSW thread, vertical slot mount mechanism
Contents Of Box
Product 1 x FA1014-NP/C/T monitor
Connection Cables 1x HDMI (touch) cable, 1x VGA (touch) cable, 1 x I/O control line, 1 x A/V input cable,
Power Adaptor 1x DC 12V plug (available in UK, US and EU style),
Mounts and stands Optional stands available
Additional accessories
Dimensions
Height (mm) 170
Width (mm) 250
Depth (mm) 29.5
Weight (g) 560

Lilliput FA1014-NP/C/T - 10.1" HDMI Capacitive Touchscreen monitor

  • Brand: Lilliput
  • Product Code: FA1014-NP/C/T
  • EAN: 6950821600825
  • Availability: In Stock
  • 252.95€
