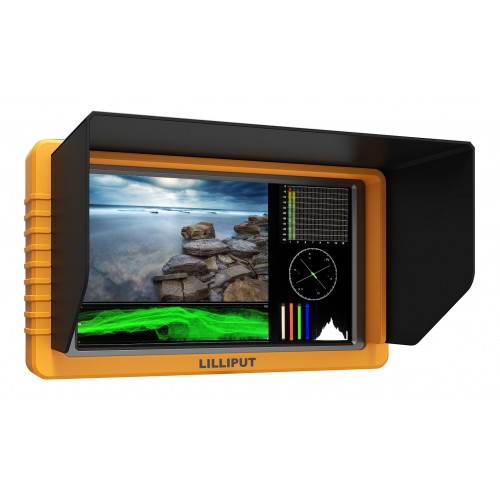

The Lilliput Q5 monitor is a 5" widescreen metal framed LCD field monitor with a full 1920x1080 LCD panel and HDMI/SDI cross conversion. Giving you superior control over your workflow whether in the field or in the studio.



black magic pocket cinema camera compatible

Black Magic Pocket Cinema Camera Compatible

This monitor is fitted with a processing chip which gives a greater range of input frequencies that can be used. For the full range of compatible frequencies please click here

7 inch 16:9 LCD

5" SDI monitor with widescreen aspect ratio

The Lilliput Q5 features our first full HD native panel, clocking in at 1920 x 1200. Much improved over its predecessors, this high resolution will give you the clearest view of your images without the need for down sampling or interpolation

hdmi-sdi-conversion

SDI - HDMI Cross conversion

You asked - we listened! The Lilliput Q5 monitor supports cross conversion between HDMI and SDI. Input SDI signal - receive HDMI output and vice versa.

7 inch 16:9 LCD

Metal outer frame for added durability

The Q5 has a lightweight metal housing - designed to take the roughest of knocks while at the same time being as light and portable. The unit weight in at 405g, with an overall thickness of 22mm - far thinner and lighter than many other comparable models. Invaluable for use in the field, or in a tough-and-tumble environment.

7 inch 16:9 LCD

Advanced monitor functionality

As detailed at the top of this description page, the Q5 has a plenitude of advanced functions to assist with your shooting. Namely - Timecodes, Columnar YRGB, Pixel Zoom Function, Vector Scopes, Waveforms, Audio Level Meters, Peaking, False Colour, Histograms, Exposures, Check Fields, Color Bars, Pixel to Pixel, and Image flips. A host of functions for a multi faceted monitoring solution.

7 inch 16:9 LCD

Battery plate system for compatible batteries with your DSLR setup

We supply the monitor with 2 battery plates as standard - these are compatible with the Canon LP-E6 and the Sony F-970. Also available are the Sony QM91D and the Panasonic DU21, and for an addition charge we can supply a V-Mount battery plate.

7 inch 16:9 LCD

Shoe mount Adaptor included

There are two options for mounting this monitor - the most common is the Shoe Mount adaptor which screws into a 1/4" BSW threaded hole at the bottom of the monitor and then clips into the shoe mount on top of your camera. Alternatively, you can use the VESA 75 mounting hole set in the back to attach the monitor to a sturdier mount if needed

Monitor Specification
Aspect Ratio 16:10
Native Resolution 1920 x 1080
Maximum Resolution 1920 x 1080
Viewing Angle (degrees) 165° Horizontal / 165° Vertical
Brightness Ratio (cd/m2) 500
Contrast Ratio 1000:1
Backlight LED
Video Inputs 3G SDI (BNC), HDMI
Video Outputs 3G SDI (BNC), HDMI
Audio Outputs Speaker Earphone Jack
Input Power 12V DC 1A 12W (Consumption)
Operating Temperature -20°c to +60°c
Mounting Options VESA 75 Holes 1/4" BSW Thread

Lilliput Q5 - 5" 1920x1080 SDI monitor with HDMI/SDI cross conversion

  • Brand: Lilliput
  • Product Code: Lilliput Q5
  • Availability: Pre-Order
  • 360.35€
