The Lilliput 779GL-70NP/C/T is a 7 inch 16:9 LCD capacitive touchscreen monitor with HDMI, DVI VGA and composite.

PLEASE NOTE - BEFORE ORDERING


PLEASE CHECK THAT YOUR CAMERA'S OUTPUT FEED FREQUENCY IS COMPATIBLE WITH THE INPUT FREQUENCIES OF THIS MONITOR BY CLICKING HERE FOR OUR LIST OF MONITORS AND SUPPORTED FREQUENCIES TYPES (FOR BLACKMAGIC CAMERA OWNERS AND OTHER 25FPS CAMERA TYPES)

7 inch high definition screen

7” monitor with widescreen

Featuring a widescreen 16:9 aspect ratio, the 779GL includes multiple AV connections to satisfy a broad range of customers requirements

High resolution LCD

HDMI upscaling for full 1080p compatibility

Experience 1080p video on a 7" monitor. The 779GL uses intelligent engineering to magically scale 1920×1080 video onto a 800×480 LCD panel without losing detail.

High brightness LCD

High brightness LCD panel

The 779 comes with a 400cd/m2 panel allowing for viewing in sunny conditions, and also comes with auto dimming controls for darker areas.

multiple input types

Connection friendly for computer and multimedia systems

As with all modern Lilliput monitors, 779GL ticks all the boxes when it comes to AV connectivity: HDMI, DVI, VGA and composite. You may see  7" monitors that still only have VGA connectivity: why settle for s a standard invented in the 1980s? 779GL features a variety of  interfaces for complete compatibility.

raspberry pi compatible

Raspberry Pi compatible monitor

The 779GL is HDMI compatible making it a good match for the Raspberry Pi for small form PC systems.

PLEASE NOTE: CAPACITIVE TOUCH SCREENS HAVE LIMITED CONNECTIVITY WITH THE RASPBERRY PI. PLEASE CHECK YOUR OPERATING SYSTEM BEFORE PURCHASE TO ENSURE COMPATIBILITY

touchscreen

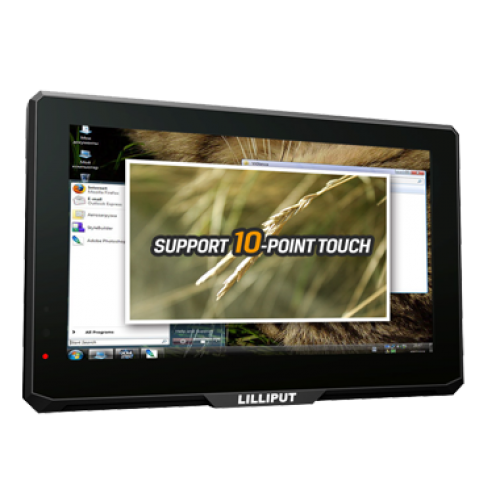

Capacitive Touch screen for multitouch functionality

Featuring the same technology as modern smart phones, the 779GL comes fitted with a capacitive touch screen system which allows for gesture based control and multitouch capability.<NOTE : NOT COMPATIBLE WITH MAC OSX OR ANDROID>.

io control interface

I/O Control Interface - new for 2014

The 779GL supports extra functionality such as reverse trigger camera mode, and computer host power controls. These functions can now be handled by the newest standard; the I/O control interface port found on newer models in the Lilliput range




entertainment solutions

Multimedia and entertainment solutions.

Lilliput HDMI monitors are ideally suited to integration with DJ systems owing to their portability and excellent visibility under low light conditions.

smart home solutions

Smart Home and CCTV Solutions.

Lilliput HDMI monitors can be integrated into existing CCTV systems thanks to their range of inputs, or used for home monitoring stations in smart home builds.

vehicle solutions

In Vehicle solutions.

Lilliput monitors can be integrated in car computer systems to provide high definition video on the move.






















Monitor Specification
Screen Size (diagonal) 7 inch
Aspect Ratio 16:9
Native Resolution 800×480 (native)
Maximum Resolution 1920×1080 (maximum)
Viewing Angle (degrees) 140º x, 120º y
Brightness Ratio (cd/m2) 400
Contrast Ratio 500:1
Backlight LED
Video Inputs HDMI, DVI, VGA, composite
Touchscreen Technology Capacitive multitouch, USB
Input Power DC 12V
Operating Temperature -20 ~ 60 degrees
Mounting Options VESA 75, ¼ inch BSW thread, vertical slot mount mechanism
Contents Of Box
Product 1 x 779GL-70NP/C/T monitor
Connection Cables 1x HDMI (touch) cable, 1x VGA (touch) cable, 1 x I/O control line, 1 x A/V input cable,
Power Adaptor 1x DC 12V plug (available in UK, US and EU style), 1x in-car cigarette lighter DC 12V adapter
Mounts and stands Mount options available
Additional accessories
Dimensions
Height (mm) 118.5
Width (mm) 185
Depth (mm) 29.5
Weight (g) 415

Lilliput 779GL-70NP/C/T - 7" HDMI Capacitive Touchscreen monitor

  • Brand: Lilliput
  • Product Code: 779GL-70NP/C/T
  • EAN: 6950821600979
  • Availability: In Stock
  • 206.05€
