It’s still very much based on ODROID C1 with Amlogic S805 processor, 1GB RAM, and an eMMC socket, but with the following improvements:

  • HDMI connector change to Type-A from Type-D (micro HDMI).
  • Improved SD card compatibility
  • CEC function whether the RTC backup battery is installed or not
  • ODROID-C1+ can be powered from the USB OTG port as well as DC-Jack
  • I2S signals exposed for external audio DAC
  • The heatsink is now standard


Odroid C1+ User Manual

Motherboard Specification
Processor Amlogic ARM® Cortex®-A5(ARMv7) 1.5Ghz quad core CPUs
RAM Memory 1Gbyte DDR3 SDRAM
Graphics Mali™-450 MP2 GPU (OpenGL ES 2.0/1.1 enabled for Linux and Android)
Storage eMMC4.5 HS200 Flash Storage slot / UHS-1 SDR50 MicroSD Card slot
Network Gigabit Ethernet
I/O Connections (additional) USB 2.0 Host x 4, USB OTG x 1 Infrared(IR) Receiver 40pin GPIOs
Input Power 5V DC (Power adaptor available separately)
Contents Of Box
Product Odroid C1+ Mainboard

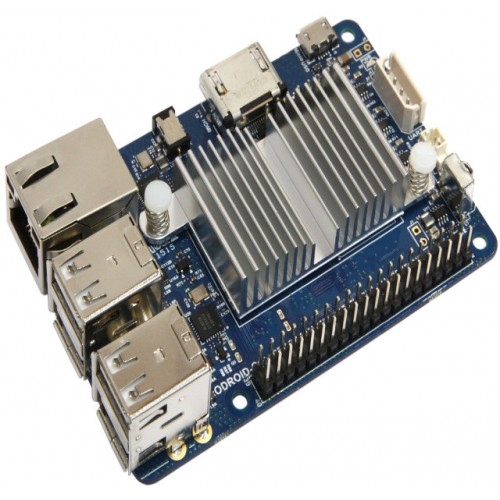

Odroid C1+

  • Brand: Hard Kernel
  • Product Code: HardKernel ODroid C1 PLUS
  • EAN: 4049702051381
  • MPN: ODroid C1
  • Availability: Pre-Order
  • 71.99€
