The PC9715 is a 10.4" panel PC with a 1.86Ghz dual core processor with compatibilty with Windows 7 + 8. Supporting a multitouch display and optional 3G, Wifi and GPS connectivity this unit replaces the existing PC1040 panel PC system as the flagship for the Lilliput computing range.



10 inch high definition screen

9.7” high definition 4:3 monitor

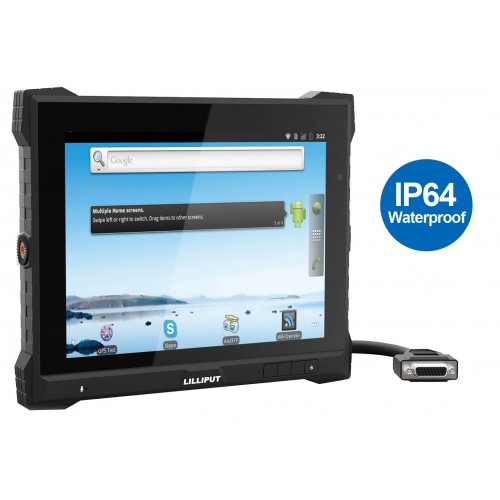

The Lilliput PC9715 panel PC system has a 9.7" rugged LCD panel that boasts an IP 64 industrial grade - making it completely enclosed to dust ingress and splashproof.

touchscreen

Capacitive multitouch enabled

The PC9715 panel PC features an integrated capacitive touchscreen ideal for POS systems and information kiosk systems.

wireless receiver

Multiple operating systems available

The PC9715 can be configured with Windows CE7, Android 4.3.1 or Linux giving greater flexibility in your applications.

wireless receiver

Optional receiver systems

Designed with functionality in mind the PC9715 can be fitted with wireless receivers for wifi, 3G and 4G with our optional reciever plugins. Ask us for more details from our contact page.
























Panel PC Specifications
Processor Freescale iMX6 Quad Core 1.0Ghz
RAM Memory 1G DDR3 - up to 2GB Embedded
Storage 8GB Flash Memory
Graphics 3D 200Mtri/s 1000Mpxl/s OpenGL ES 3.0 & Halti, CL EP
Optical Drive None (external USB optional)
Networking 10/100 LAN

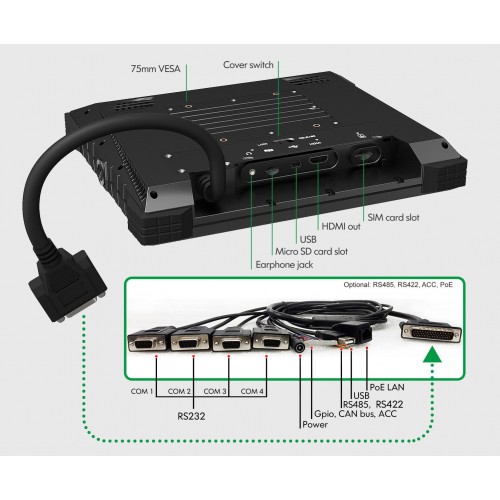

I/O Connections (additional) HDMI Output - Micro SD card Socket - USB 2.0 Port and Host - Headphone Jack - DC Power Input - RS232 x 4/RS232 x 3, RS485x1/ RS 232 x 2, RS422 x 1, RS485 x 1 - LAN - GPIO Input x 4, GPIO Out x 6
Chassis Aluminium outer chassis
Screen Size (diagonal) 9.7 inch
Aspect Ratio 4:3
Touchscreen Technology Capacitive
Software Installed One to be installed (Android 4.3.1 - Linux Debian 7.0 - WinCE 7.0)
Input Power 12V
Mounting Options
Contents Of Box
Product PC9715 Panel PC
Connection Cables RS232/485 Adpator cables
Power Adaptor 12V Power Adaptor (UK, EU and US fittings available)
Mounts and stands Rear mounting bracket (optional)
Additional accessories Driver disk and touchscreen Software

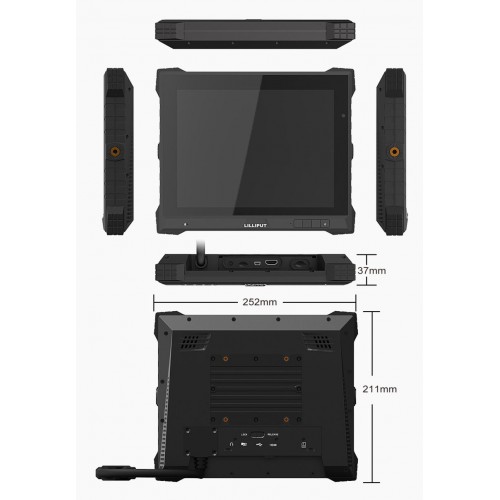

Dimensions
Height (mm) 211
Width (mm) 252
Depth (mm) 37
Weight (g) 1340

Lilliput PC9715 - 9.7" IP 64 Rated Panel PC

  • Brand: Lilliput
  • Product Code: PC9715
  • Availability: In Stock
  • 598.80€
