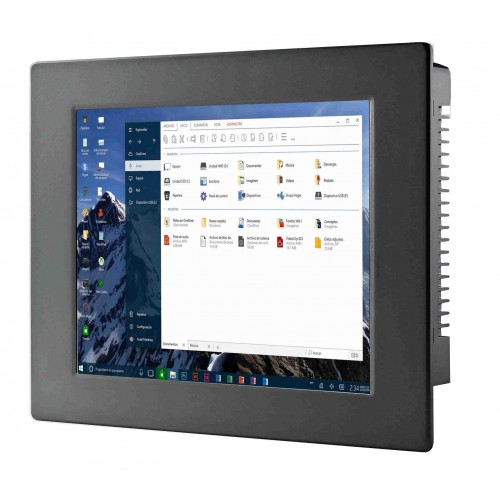

The PC1201 is a 12" panel PC with an Intel Atom D525 processor compatible with Windows 7 and Windows 10. Supporting a 5 wire touchscreen for additional stability and multiple mounting options, the PC1201 is ideal for industrial applicatations.



10 inch high definition screen

Intel Atom D525 processor

The PC1201 is fitted with the industrial standard Atom D525 processor, a superbly reliable processor that runs at low heat production but remaining high power for processor heavy applications.

touchscreen

Aluminium alloy frame

The PC1201 has a lightweight aluminum alloy comprising it's frame, giving it the strength to endure while still remaining lightweight for portable operations.

wireless receiver

Built for industry

The PC1201 is a system designed around the industrial market, with it's metal outer frame, and 5 wire touchscreen - this system is reliable and tough at a fraction of the price of other industrial standard panel.

wireless receiver

5 Wire resistive touchscreen

With a 5 wire resistive touchscreen the PC1201 is able to stand greater amounts of use without failing.

wireless receiver

Multiple mounting options

The PC1201 can be mounted in a variety of ways - using the VESA mounting on the rear of the unit or flushmount the system using the front mounting clips. Also available - our rackmount mounting kits let you fit PC1201 into your rack system for server management you can count on.


Panel PC Specifications
Processor Intel D525 Processor 1.8Ghz
RAM Memory 2G DDR3
Storage 32GB Internal SSD mSATA - up to 512Gb (optional)
Graphics Integrated
Optical Drive None (external USB optional)
Networking 10/100 LAN
I/O Connections (additional) USB 2.0 Port x 4 - Headphone Jack - DC Power Input - RS232 x 4/RS485 x 4 - LAN -
Chassis Aluminium outer chassis
Screen Size (diagonal) 12 inch
Aspect Ratio 4:3
Touchscreen Technology 5 wire resistive
Software Installed None Intalled (Windows 7, 8, 10 optional)
Input Power 12V
Mounting Options VESA 75, Front Mount clips
Contents Of Box
Product PC1201 Panel PC
Connection Cables PS2 Adpator cables
Power Adaptor 12V Power Adaptor (UK, EU and US fittings available)
Mounts and stands Rear mounting bracket (optional)
Additional accessories Driver disk and touchscreen Software
Dimensions
Height (mm) 263
Width (mm) 340
Depth (mm) 48
Weight (g) 3.84 kg

Lilliput PC1201 - 12" inch Panel PC

  • Brand: Lilliput
  • Product Code: PC1201
  • Availability: In Stock
  • 900.00€
