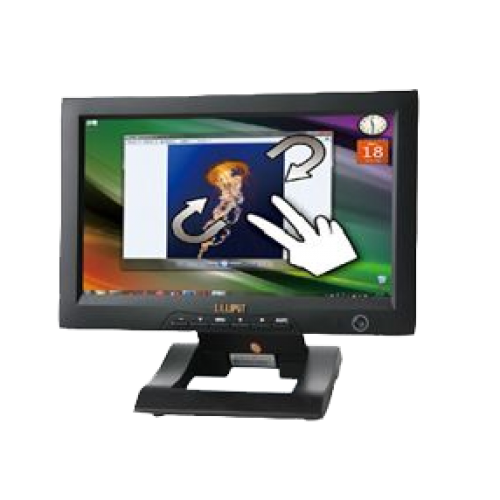

The Lilliput FA1012-NP/C/T is a 10.1" 16:9 TFT LCD capacitive touchscreen monitor with HDMI, DVI, VGA and composite inputs.

PLEASE NOTE - BEFORE ORDERING


PLEASE CHECK THAT YOUR CAMERA'S OUTPUT FEED FREQUENCY IS COMPATIBLE WITH THE INPUT FREQUENCIES OF THIS MONITOR BY CLICKING HERE FOR OUR LIST OF MONITORS AND SUPPORTED FREQUENCIES TYPES (FOR BLACKMAGIC CAMERA OWNERS AND OTHER 25FPS CAMERA TYPES)

10 inch high definition widescreen

10" monitor with widescreen aspect ratio

FA1012 is Lilliput's best-selling 10" monitor. The 16:9 widescreen aspect ratio makes FA1012 ideal for a variety of AV applications - you can find the FA1012 in TV broadcast rooms, audio-visual installations, as well as being a preview monitor with professional camera crews.

Enhanced colour definition

FA1012 boasts a clear, sharp picture thanks to a high contrast ratio and LED backlight. The addition of the matt display means that all colours are well represented, and leaves no reflection on the screen. What's more, LED technology brings great benefits; low power consumption, instant-on back light, and consistent brightness over many years of use.

Natively high resolution

Natively 1024×600 pixels, FA1012 can support video inputs up to 1920×1080 through HDMI. It supports 1080p and 1080i content, making it compatible with most HDMI and HD sources



Range of inputs

Customers don't need to worry about if their video format is supported, the FA1012 has HDMI/DVI, VGA and composite inputs. No matter what AV device you are using, it will work with the FA1012, whether that be a computer, Blu-ray player, CCTV camera, DLSR camera.

VESA 75 mount

Different mounting options

There are two different mounting methods for FA1012. The built-in desktop stand provides sturdy support for the monitor when set up on a desktop.

There is also a VESA 75 mount when the desktop stand is detached, providing customers with virtually unlimited mounting options.

Capacitive Touchscreen

FA1012-NP/C/T has recently been upgraded to work using a capacitive touchscreen, ready for Windows 8 and the new UI (formerly Metro), and compatible with Windows 7. Giving touch functionality similar to the iPad and other tablet screens, its an ideal companion to the latest computer hardware <NOTE : NOT COMPATIBLE WITH MAC OSX OR ANDROID>.



Raspberry Pi Compatible Monitor

Raspberry Pi compatible monitor

Looking to build a small form factor PC using the Raspberry Pi? You're in luck! Monitors bearing this tag are tested as compatible with the popular Raspberry Pi miniature PC. This can mean using either the HDMI socket or the RCA Composite as an input source.

PLEASE NOTE: CAPACITIVE TOUCHSCREENS HAVE LIMITED COMPATIBILTY WITH THE RASPBERRY PI DEPENDANT ON O/S DISTRO. PLEASE ENSURE COMPATIBILITY BY CONTACTING US FIRST


























Monitor Specification
Screen Size (diagonal) 10.1 inch
Aspect Ratio 16:9
Native Resolution 1024×600 (native)
Maximum Resolution 1920×1080 (maximum)
Pixel Pitch (mm) 0.21525×0.21525
Scan Frequency (Hz) 60-72
Response Time (ms) 20
Viewing Angle (degrees) 140º x, 110º y
Brightness Ratio (cd/m2) 250
Contrast Ratio 500:1
Backlight LED
Video Inputs HDMI, DVI, VGA, composite
Audio Outputs <1.2W Internal Speaker
Touchscreen Technology Capacitive multitouch
Input Power 12V DC
Operating Temperature -20 - 60
Mounting Options VESA 75, desktop stand
Contents Of Box
Product 1 x FA1012-NP/C/T monitor
Connection Cables 1x HDMI cable, 1x Composite break-out cable, 1x VGA breakout cable
Power Adaptor 1x DC 12V plug (available in UK, US and EU style)
Mounts and stands Built in desktop stand
Additional accessories 1x Full-function infrared remote control with battery, Touchscreen Drivers included on CD
Dimensions
Height (mm) 163
Width (mm) 256
Depth (mm) 35
Weight (g) 1166

Lilliput FA1012-NP/C/T - 10.1" HDMI capacitive touchscreen monitor

  • Brand: Lilliput
  • Product Code: FA1012-NP/C/T
  • EAN: 6950821600313
  • Availability: In Stock
  • 233.41€
